Hot Sale Automatic Plastic Tube Filling and Sealing for Gel Ointment Toothpaste Tube Filling Machine

ブランド名:	LTPM China
モデル番号:	LTRGシリーズ
MOQ:	1Set
価格:	交渉可能
支払条件:	L/C、T/T
供給能力:	15セット/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

自動グレード:

自動

電圧:

380(220) V/50Hz

材料:

SUS 304/316L

生産能力:

25-40 PC /min

モーター:

1.5kw

管の高さ:

50-250mm

重さ:

300kg

寸法（l*w*h）:

1500*700*1800mm

パッケージの詳細:

標準の木製ケースをエクスポートします

供給の能力:

15セット/月

ハイライト:

automatic plastic tube filling machine

gel ointment tube sealing machine

toothpaste tube filling machine with warranty

製品説明

Introduction

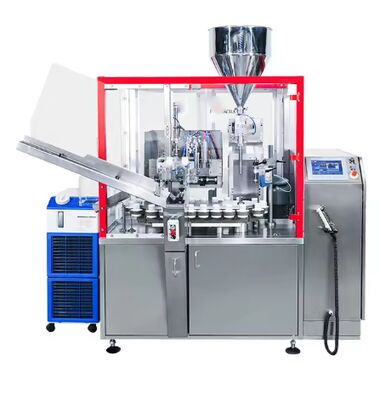

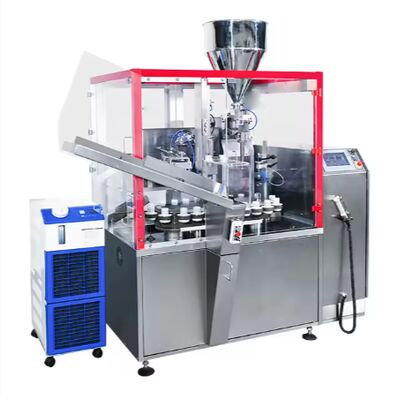

The fully automatic hose filling and sealing machine is suitable for filling and sealing liquids or paste materials, as well as printing production batches; There are two types of machines available: internal heat sealing and folding tail sealing, which are ideal equipment for filling and sealing hoses in industries such as cosmetics, food, ointments, and adhesives; The machine is small, fully functional, and easy to operate, making it the most correct choice for transitioning from semi-automatic to fully automatic.

Features

1. Adopting internal heat sealing at the tail, stable and high-speed, the explosive tail test can bear a weight of 60KG.

2. Starting from the bottom, curve filling with an accuracy of ± 0.1~0.5%.

3. The body is made of SUS304 material; The content contacting material is made of SUS316L material, which complies with FDA standards.

4. It can be used for filling liquid to materials with a viscosity of 100000 CP. s.

5. The filling system can be quickly disassembled and cleaned without tools, making it convenient and fast to switch production.

5. Speed of 60pcs/min, stable operation and low noise.

6. The machine is small, fully functional, easy to operate, and provides 24-hour after-sales service.

Application

Detail Images

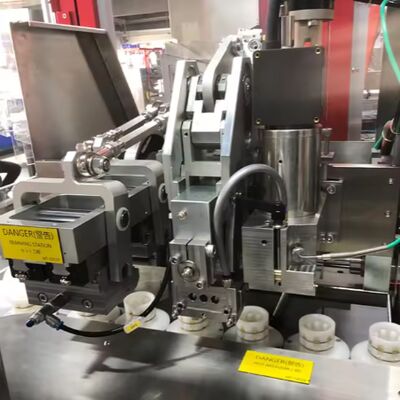

9-Station Work Table

You just need to put the tube into the supply box, and the machine will automatically insert, dust, position, fill, heat, seal the tail, cut the tail, and discharge.(tube holder:22pcs)

Tube Type

Tube Type :Circular And Elliptical； Tube Diameter:Φ10~50mm(Optional: Φ55mm) Tube Length:50~250mm Tube Material:PE,Aluminum-plasti,Plastic

Machine Material

The body is made of SUS304 material; The content contacting material is made of SUS316L material, which complies with FDA standards

Cursor Positioning

The sensor for cursor positioning adopts SICK brand, with precise positioning; The cursor positioning head is designed for quick disassembly and assembly, making it more convenient for production conversion operations.

Filling piston and Filling nozzle

Independently developed filling piston and filling nozzle, high-precision processing, more stable filling, filling accuracy: ± 0.1~0.5%; Can choose from forward cutting, reverse cutting, and suction back, with no dripping or drawing during filling.

Heating head

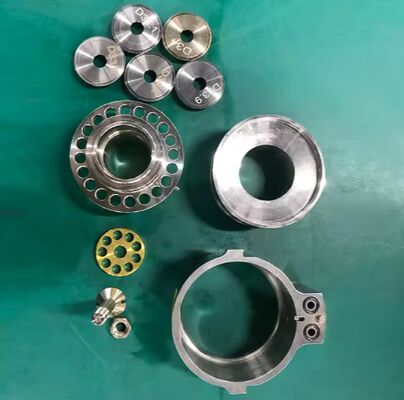

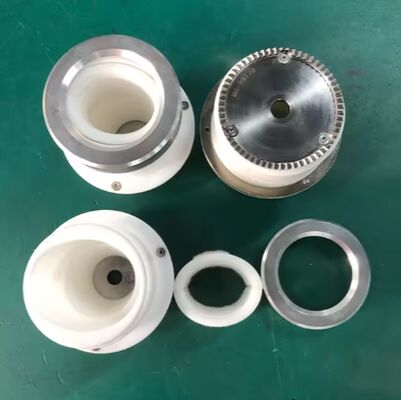

One heating head with one cooling ring, equipped with 5 different sizes of end plates. For example, with a diameter of 50 and end pieces: 49.8, 49.9, 50.0, 50.1, 50.2. Even if the thickness of the hose material is different, a set of heating heads can correspond.
