商品の詳細

家製品

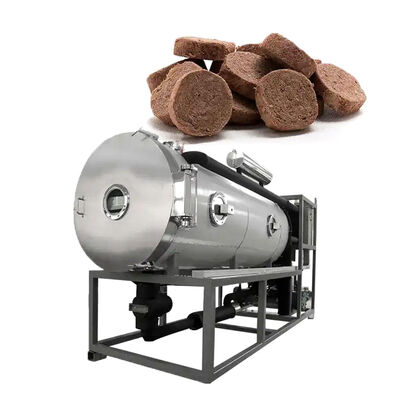

High Output 15 kg/batch Freeze Dryer with 70 mm Shelf Spacing and Touch Screen Operation for Industrial Lyophilization

ブランド名:	LTPM China
モデル番号:	LTDGシリーズ
MOQ:	1セット
価格:	交渉可能
支払条件:	LC、T/T
供給能力:	15セット/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

重さ:

1200kgs

項目名:

凍結乾燥機

乾燥した区域:

1.08平方メートル

皿区域:

1.02平方メートル

脱水の総容積:

15 kg/batch

棚の間隔:

70mm

暖房モード:

伝導モード

オペレーションシステム:

タッチスクリーン

パッケージの詳細:

輸出標準木製ケース

供給の能力:

15セット/月

ハイライト:

15 kg/batch Freeze Dryer

70 mm shelf spacing Lyophilizer

Touch Screen Operation Vacuum Freeze Drying Machine

製品説明

High Output Industrial Lyophilizer for Coffee, Milk Candy, and Ice Cream Production

This food-grade vacuum freeze dryer is a high-efficiency industrial drying solution for food processing, suitable for fruits, vegetables, meat, seafood, snacks, and health products. It adopts advanced low-temperature sublimation technology to maintain original nutrition, color, flavor and rehydration rate, with long shelf life and stable quality. Made of food-safe stainless steel, it meets international food safety and hygiene standards, featuring easy operation, low energy consumption, and reliable performance. Ideal for small-batch production and large-scale industrial manufacturing, it is widely exported to global markets and trusted by food manufacturers worldwide.

Key Features

Global Adaptable Industrial Configuration: Designed with three-phase five-wire power supply (415V/50HZ for main machine, 380V/50HZ for frozen library) and adaptive cooling water pressure/flow parameters, matching industrial power and water supply standards of most countries and regions.
Multi-industry Versatile Freeze-drying Solution: Ideal for food processing (tropical fruits, aquatic products, instant food), pharmaceutical & biotech (vaccines, microbial agents, biological specimens), and high-end health products (bee products, Chinese herbal medicine).
GMP/FDA/EU Compliant for Global Certification: Fully in line with CGMP design norms with electronic signature and data traceability functions, meeting FDA and EU quality standards for international product certification.
Low-cost High-efficiency Global After-sales Service: 7 professional technicians available for on-site global dispatch, 24/7 online technical support with remote video fault diagnosis, ensuring fast response and transparent service costs.
Energy-saving & High-yield for Global Cost Reduction: Equipped with stepless energy adjustment compressor and PID precision temperature control system, reducing energy consumption by 20%-30% compared to traditional equipment. Large-capacity shelf (110.16㎡) enables high-speed freeze-drying for large-batch continuous production.

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Machine Details

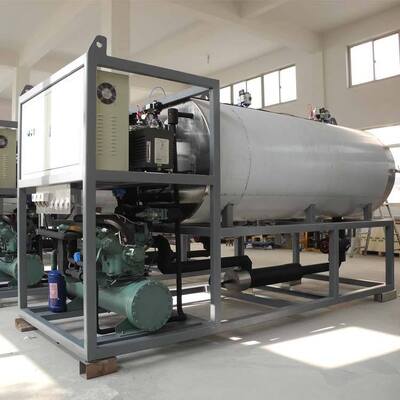

Chamber: Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage.

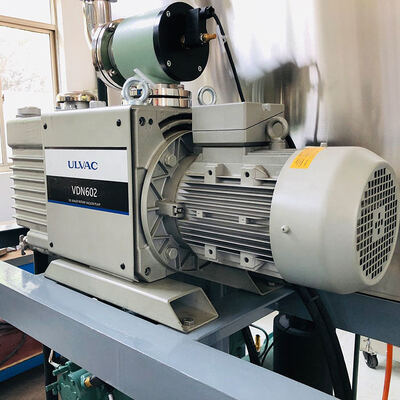

Vacuum System: Uses rotary vane vacuum pump + roots pump unit for larger pumping speed and higher efficiency.

Condense Pipes: Argon welding forms internal and external connections to ensure clean pipes without leaks.

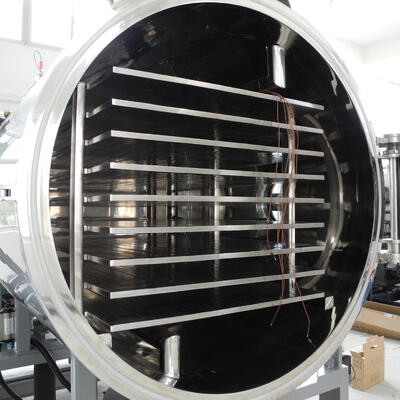

Shelves: Through dedicated machining, shelves guarantee high demand flatness for optimal performance.
