Stable Durable Industrial Grade 15 kg/batch Vacuum Freeze Drying Machine with 70 mm Shelf Spacing and Touch Screen Operation

ブランド名:	LTPM China
モデル番号:	LTDGシリーズ
MOQ:	1セット
価格:	交渉可能
支払条件:	LC、T/T
供給能力:	15セット/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

重さ:

1200kgs

項目名:

凍結乾燥機

乾燥した区域:

1.08平方メートル

皿区域:

1.02平方メートル

脱水の総容積:

15 kg/batch

棚の間隔:

70mm

暖房モード:

伝導モード

オペレーションシステム:

タッチスクリーン

パッケージの詳細:

輸出標準木製ケース

供給の能力:

15セット/月

ハイライト:

15 kg/batch Vacuum Freeze Drying Machine

70 mm shelf spacing Lyophilization Machine

Touch Screen Operation Freeze Dry Machine

製品説明

LTDG-100 Industrial Vacuum Freeze Drying Machine

The LTDG-100 Vacuum Freeze Drying Machine is a high-performance industrial freeze-drying solution engineered for global industrial use, integrating international top-tier components, high-precision intelligent control, and GMP/FDA/EU compliant design. Adapting to industrial standards worldwide, it provides one-stop freeze-drying processing for food, pharmaceutical, biotech and high-end health product industries, enabling high-value-added material processing and efficient mass production for global customers.

Key Features & Benefits

International Branded Core Components & Stable Reliable Operation
Equipped with BITZER compressor (German) and ULVAC vacuum pump (Japan), with core components from world-renowned brands including Danish DANFOSS, American Omega and Swiss REFCO. Features low failure rate and long service life with whole machine warranty and lifelong maintenance service to ensure global continuous production.
High Precision & High Efficiency for Large-Batch Production
As a 110.16㎡ shelf large capacity vacuum freeze dryer with maximum condensate ice capacity of 2000KG per batch. Shelf heating temperature precisely controlled at ±0.3℃ via PID regulator, with ultimate vacuum ≤13.3Pa. Reduces material water content to 0.5%~4% in one time, realizing fast sublimation and drying.
CGMP/FDA/EU Compliant for Global Market Access
Fully following CGMP design specification with SUS304 stainless steel construction and surface roughness Ra≤0.6μm. Control system complies with FDA EU standards with electronic signature and complete data traceability, facilitating international product certification.
Global Adaptable Configuration & Customizable Design
Designed with three-phase five-wire power supply compatible with global industrial specifications. Supports personalized customization including steam heating replacement, painting color selection and door opening direction adjustment. Ideal customizable industrial freeze dryer for SEA Middle East Europe markets.
Energy-Saving & Eco-Friendly Operation
Equipped with stepless energy adjustment compressor and PID precision temperature control system, reducing energy consumption by 20%-30% compared with traditional equipment. Uses R404a environmentally friendly refrigerant complying with Montreal Convention standards.
Comprehensive Global Service & Support
As a professional global after-sales service freeze drying equipment supplier, we provide 24/7 online technical support, remote video fault diagnosis, and on-site global dispatch with clear service costs. FOB Shanghai shipping with 120 working days delivery cycle.
Multi-Industry Versatile Freeze-Drying Solution
The LTDG-100 is a one-stop freeze drying solution for biotech health products, food processing and pharmaceutical industries. Retains over 95% of original nutrients and flavor, enabling high-value-added processing of agricultural products and biological materials.
Intelligent Control & Standardized Process Management
Equipped with SIEMENS PLC & touch screen control system, supporting seamless switching between manual and automatic modes, multi-language operation interface and batch recipe storage. Enables unified freeze-drying process control for global branch factories.

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Machine Component Details

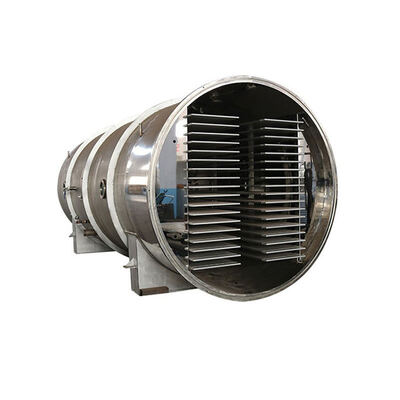

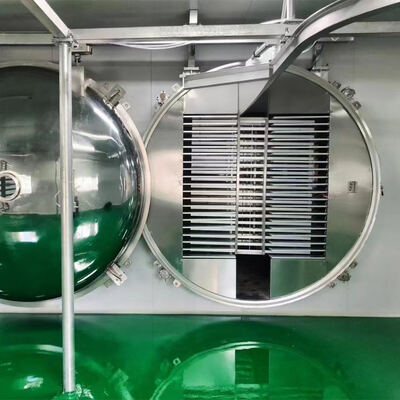

Drying chamber board layer with mirror polishing, multiple process inspections ensure no leakage, temperature control accuracy less than +1°C

Water trap made of SU304/316L stainless steel, argon arc welding for one-time internal and external forming, ensuring long-term use without leakage

Food grade stainless steel material, safe and hygienic, thickened plate integrally formed for durable long-term use

Vacuum system with dual prepumping and maintenance design, multi-stage vacuum Roots pump combination with maximum vacuum <1Pa

Refrigeration system with high-quality imported compressor units, multiple protection functions, efficient and energy-saving operation

Multi-functional control system with diversified regulation, remote operation monitoring, and built-in password lock system
